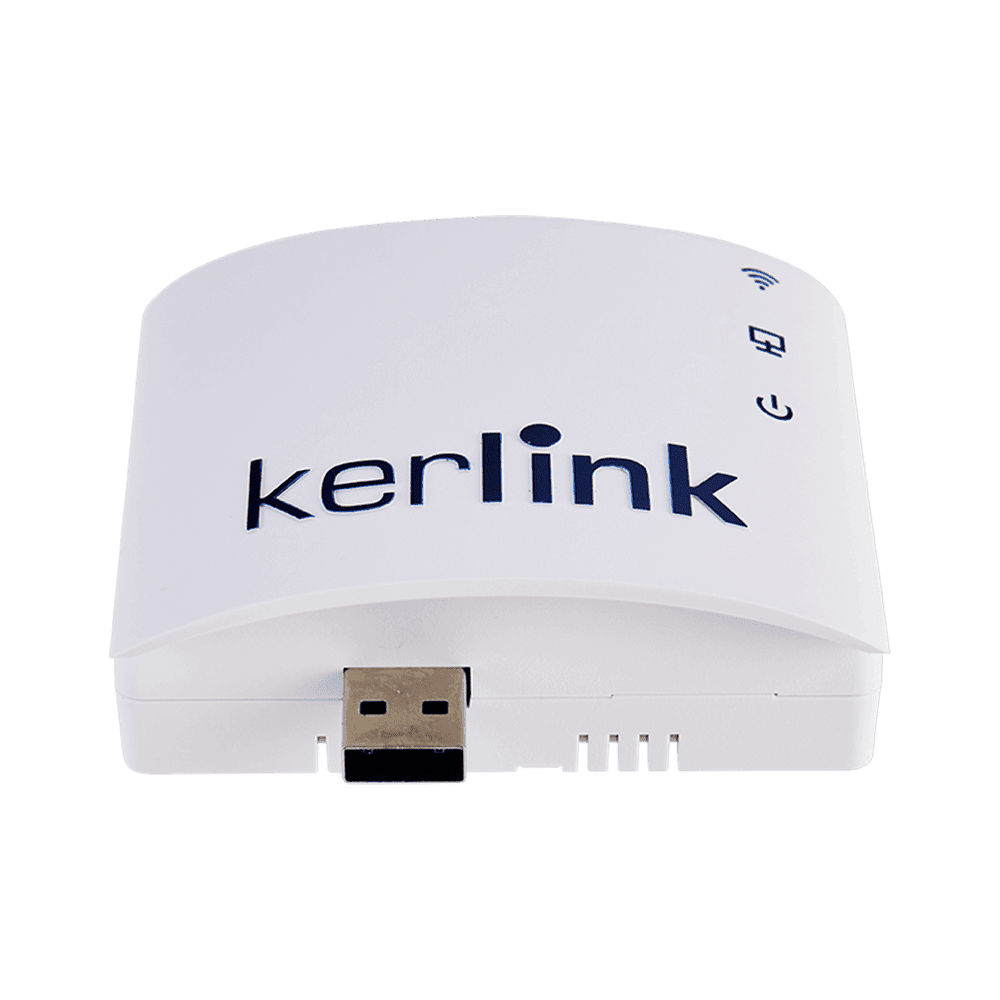

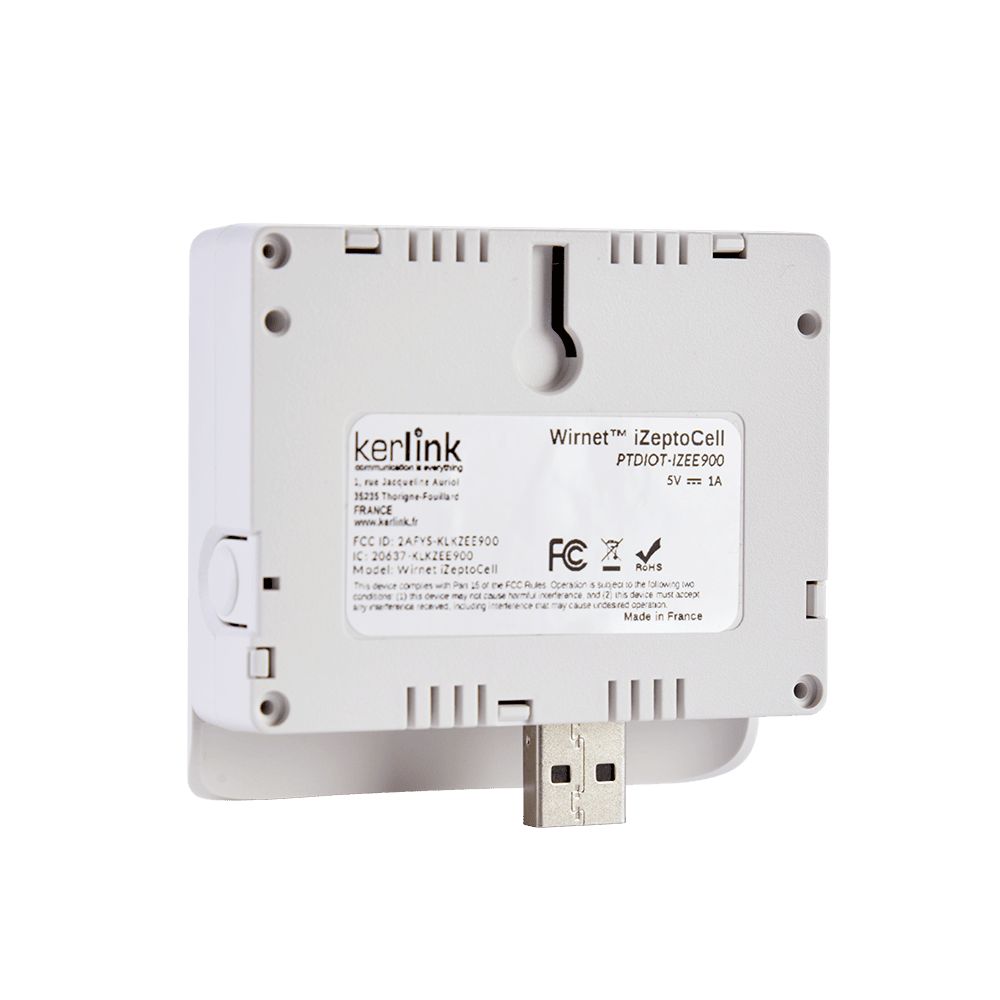

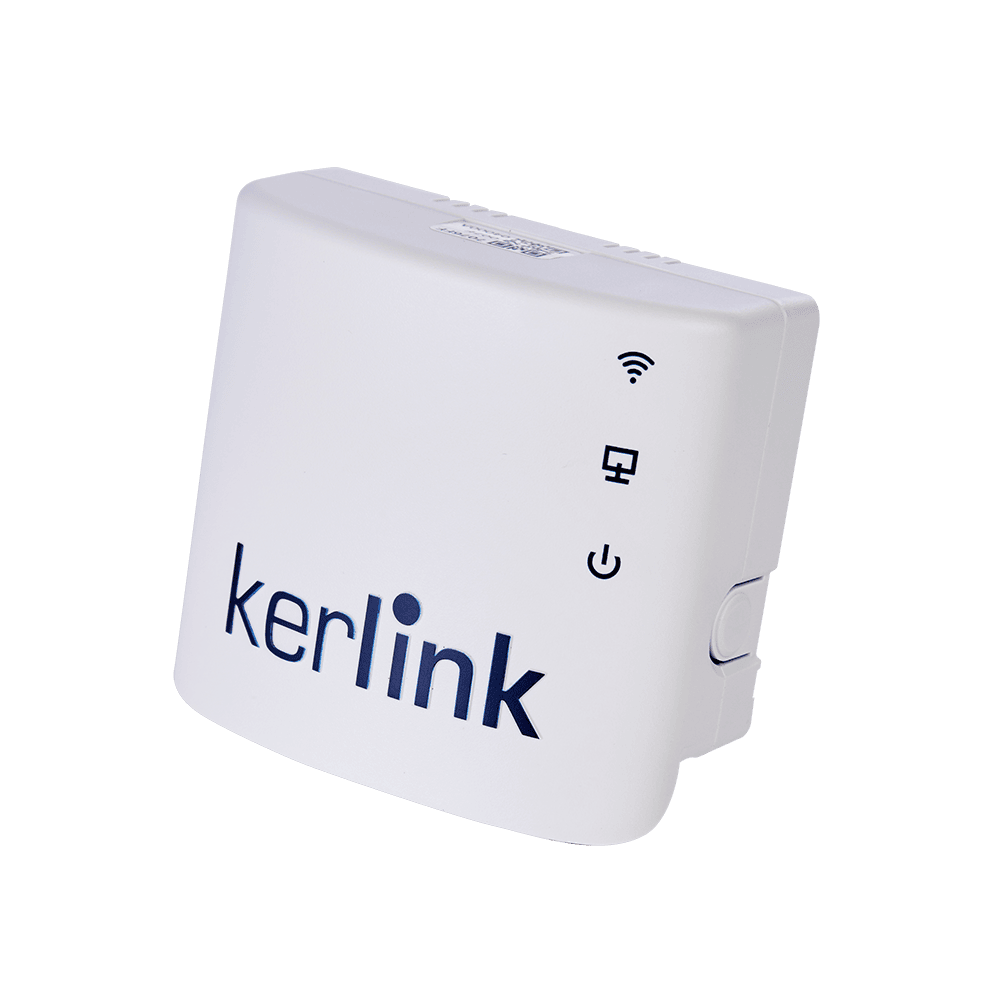

Kerlink iZeptoCell Cellular LoRaWAN gateway
Kerlink iZeptoCell Cellular LoRaWAN gateway - US/CAN - 915 MHz is backordered and will ship as soon as it is back in stock.
Kerlink iZeptoCell Cellular LoRaWAN gateway - US/CAN - 915 MHz is backordered and will ship as soon as it is back in stock.
The Kerlink Wirnet® iZeptoCell Cellular brings robust indoor LoRaWAN® connectivity to locations where fixed access isn’t available. With support for LTE-M and GPRS networks, this version is perfect for mobile or remote indoor deployments that demand flexible wireless connectivity.
Built for low-power wide-area applications, it seamlessly supports the scale, coverage, and data flow requirements of massive IoT—whether you're connecting hundreds of sensors in commercial buildings or remote industrial facilities.
Its flexible power options, including AC-DC, USB, and PoE splitter compatibility, make installation simple in a wide variety of use cases. Zero-touch provisioning allows true plug-and-play setup—ideal for non-technical users or rapid rollouts.
With native support for LoRa®-based geolocation and wireless backhaul, the iZeptoCell Cellular is a reliable, easy-to-deploy solution for operators needing indoor IoT coverage in dynamic or infrastructure-light environments.
Strengths
High performance, reliability & robustness
- Semtech Sx1302 CoreCell Reference Design,
- Integrated LoRa antenna,
- Built-in high rejection filters,
- Low power consumption
Secure hardware and software architectures
- SecureBoot (Signed firmware),
- SecureStorage (keys and certificates in secured area) using ProvenCore solution,
- Secured links and backhaul protection (OpenVPN/IPsec),
- Reboot (watchdog) and recovery on previous Management config (or factory config if the boot issue is not fixed).
Key Features
- Supported unlicensed bands: 863-870MHz (EMEA, India), 902-928MHz (North America),
- Supported LoRaWAN regional parameters: EU863-870, IN865-867, RU864-870, US902-928,
- 8 x 8 packets detectors, 8ch RX (125 kHz, multi Spreading Factor) + 1ch RX (250KHz or 500kHz, mono Spreading Factor) + 1ch RX (FSK) + 1ch TX,
- LoRa performance:
- Rx Sensitivity: -140 dBm (SF12BW125),
- Tx conducted power: configurable from 5dBm to 27dBm
- Maximum EIRP: 28dBm
- Ethernet version: Ethernet IEEE 802.3 10BASE-T, 100BASE-TX,
- Cellular version: LTE CatM1 / LTE CatNB2 (NB-IoT) / EGPRS / GPRS worldwide connectivity with remotely configurable eUICC,
- +23dBm output power (class 3),
- Bands 1, 2, 3, 5, 8, 12, 13, 18, 19 20, 25, 26, 27, 28, 66, 71, 85,
- EU RED, US FCC, CA ISED, BRAZIL ANATEL, JAPAN JRF & JTBL, CHINA CCC, Singapore INDA, Australia RCM, Taiwan NCC, Korea approvals,
- MFF2 eUICC remotely configurable,
- CPU: ARM Cortex A7 792MHz,
- DDRAM 256 MB,
- 4GB eMMC (2GB available for user)
- Power consumption: 1W nominal, 3.5W max
- Operating Temperature Range: 0°C +55°C (for gateway only, without power supply),
- Humidity: 5% to 95%,
- Size: 76 x 68.5 x 32 mm,
- Weight: 65g (gateway only); 250g (with packaging),
- Casing: IP30
