A pump station 20 miles from the nearest control room does not need a high-bandwidth connection to report a rising wet-well level, a cabinet-door opening, or a generator fault. It needs a reliable path for small, meaningful data points to reach operators without creating another difficult-to-maintain communications system. That is precisely where organizations can integrate LoRaWAN with SCADA to extend operational visibility across distributed assets.
For utilities, municipalities, industrial operators, and system integrators, the value is not simply adding another wireless protocol. The objective is to bring low-power field data into established supervisory workflows: the same screens, alarms, historian records, and response procedures that operations teams already trust. Done well, LoRaWAN becomes a practical edge connectivity layer for assets that are expensive or impractical to wire, meter, or connect over cellular.
Where LoRaWAN Fits in a SCADA Architecture
LoRaWAN is designed for long-range, low-power communication of relatively small and infrequent messages. SCADA platforms are designed to supervise processes, present operational status, alarm on exceptions, and retain data for analysis. The two technologies complement each other when the application respects their different roles.

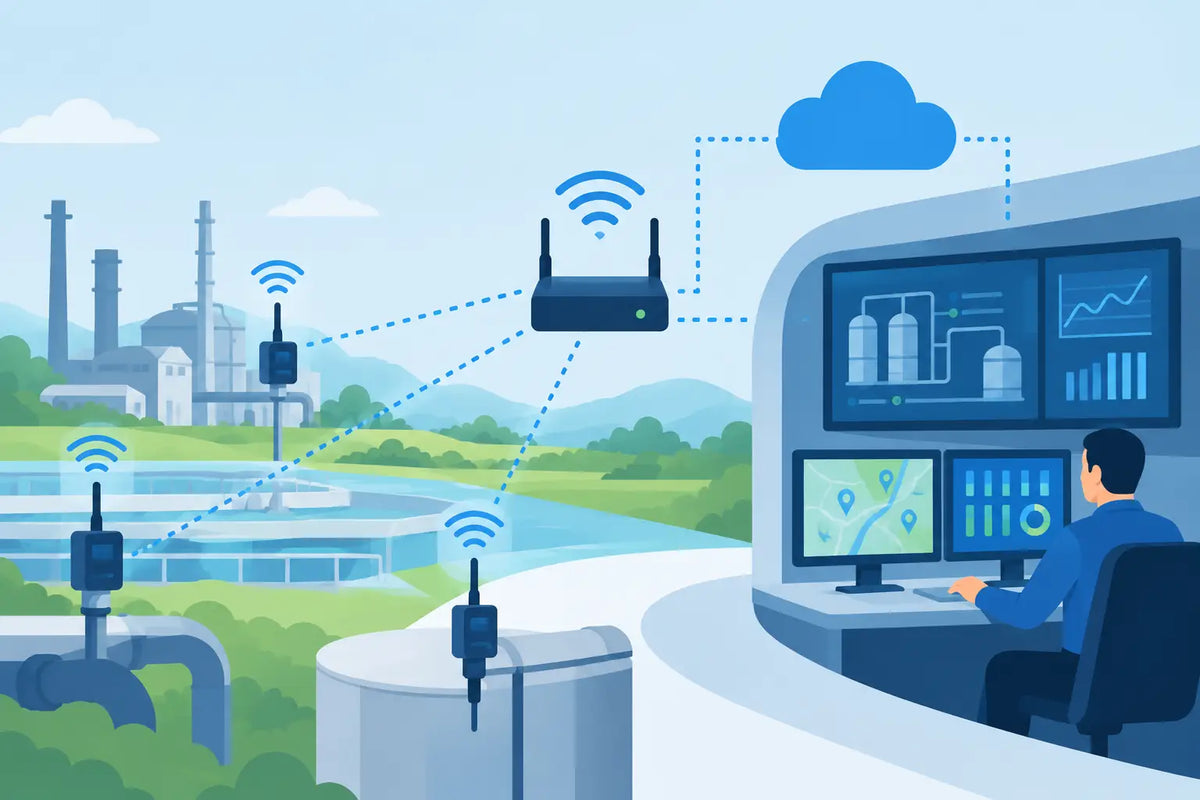

A typical architecture starts with battery-powered or externally powered sensors and remote I/O devices at the field level. These devices send uplinks to one or more LoRaWAN gateways. Gateways forward packet data over Ethernet, cellular, or another IP backhaul to a LoRaWAN network server. From there, an integration layer delivers normalized data to the SCADA environment, commonly through MQTT, OPC UA, REST APIs, or a purpose-built connector.
The network server is not a substitute for SCADA. It manages device authentication, message deduplication, encryption keys, downlink scheduling, and payload routing. SCADA remains the operational system of record, where a decoded tank level becomes an engineering-value tag, an alarm threshold, and an actionable condition for an operator.
This division matters. Trying to make LoRaWAN behave like a high-speed control bus usually produces disappointing results. Using it for remote status, consumption, environmental monitoring, condition indicators, alarm inputs, and low-frequency setpoint changes can produce a highly effective deployment.
Define the Use Case Before Selecting Hardware
The quickest way to overcomplicate an integration is to start with a gateway specification before defining the process requirement. Begin with the data points that operators actually need, how often they need them, and what action follows when a value changes.
For example, an AMI or remote metering project may only require hourly readings plus exception alarms. A wastewater application may need level data every 5 to 15 minutes, along with immediate high-level alerts. A facility monitoring project may report temperature, humidity, differential pressure, and door status several times per hour. Each case has different requirements for sensor power, reporting frequency, antenna placement, backhaul availability, and SCADA tag design.
Classify every point as monitoring, alarm, supervisory command, or closed-loop control. LoRaWAN is well suited to the first three when latency expectations are realistic. It is generally not the right transport for deterministic, time-critical closed-loop control, such as motion control or high-speed protective functions. Those functions belong on wired industrial networks or communications systems engineered specifically for that duty.
Choose an Integration Method That Operations Can Support
There is no single correct way to move LoRaWAN data into SCADA. The right method depends on the existing automation stack, cybersecurity model, internal skills, and whether the project is expected to scale from dozens of endpoints to thousands.
MQTT is often a practical choice where the SCADA platform, edge gateway, or middleware can subscribe to topics and transform payloads into tags. It supports a clean publish-and-subscribe model and can separate LoRaWAN traffic from the SCADA application layer. However, teams should define topic conventions, quality-of-service expectations, retained-message behavior, and certificate management from the beginning.
OPC UA is frequently preferred in industrial environments where standardized, structured interoperability is a priority. An edge service or middleware layer can expose decoded LoRaWAN values as OPC UA variables to the SCADA system. This can simplify the SCADA-side experience, but it adds another component that must be documented, monitored, patched, and backed up.
REST APIs can work well for periodic data collection and reporting workflows, although they are less natural for immediate alarm delivery unless paired with event handling. Some SCADA vendors and network-server providers offer direct connectors. These can reduce implementation effort, but buyers should confirm how they handle payload decoding, retries, store-and-forward behavior, user access, and long-term version compatibility.
For larger deployments, middleware is often the better engineering decision. It creates a controlled boundary between LoRaWAN devices and SCADA tags, allowing teams to validate values, apply units and scaling, filter duplicates, calculate derived conditions, and retain raw payloads for troubleshooting. The trade-off is operational ownership: middleware must be treated as production infrastructure, not a temporary integration script.
Map Data Correctly When You Integrate LoRaWAN with SCADA
A LoRaWAN payload is commonly compact and encoded to preserve device battery life and minimize airtime. SCADA does not benefit from receiving an opaque hexadecimal string. The integration must decode that payload and map it to meaningful operational values.
Each tag should have a defined source device, measurement type, engineering unit, scaling rule, timestamp, quality state, and acceptable operating range. A pressure sensor may transmit an integer that represents tenths of PSI. A meter may transmit a cumulative total and a battery-voltage indicator in the same message. A clean decoder turns those fields into distinct, documented tags rather than forcing operators to interpret raw device data.
Timestamp handling deserves particular attention. Decide whether the SCADA historian should use the sensor event time, network-server receipt time, or integration-server processing time. In many remote monitoring applications, receipt time is adequate. Where reporting accuracy or event reconstruction matters, preserve both source and receipt timestamps so delayed messages can be identified.
Quality should also be explicit. A value can be valid but stale. A device may be silent because it is out of coverage, its battery is depleted, or its reporting interval has not yet elapsed. Configure communication-health tags and alarms separately from process alarms. A high tank level and a missing tank-level signal are different operational events and should not be treated the same way.
Engineer Coverage and Backhaul for the Actual Site
Gateway count is not determined by a coverage circle on a map. Terrain, building materials, antenna height, RF noise, foliage, underground installations, and gateway backhaul all influence results. A gateway positioned high with a correctly selected external antenna can serve a large outdoor area, while dense industrial structures may require additional gateways to reach indoor equipment or shielded process areas.
For critical applications, design for overlap rather than minimum coverage. Multiple gateways can receive the same LoRaWAN uplink, improving the probability that the network server receives the message. Redundant backhaul and appropriately protected gateway power are equally important. A well-placed gateway with a single unreliable cellular connection may still become the project’s weak point.
Professional gateway hardware from established manufacturers is valuable here because it supports the operating conditions and management practices expected in infrastructure deployments. Evaluate environmental ratings, mounting options, antenna connectors, local packet forwarding capability, remote management, power options, and support for the regional LoRaWAN frequency plan. In the US and Canada, confirm that the devices and network configuration are appropriate for the intended deployment region.
Treat Security and Downlinks as Design Decisions
LoRaWAN provides strong device-level security through unique identifiers and cryptographic keys. That does not eliminate the need for broader system security. Gateways, network servers, integration middleware, SCADA servers, and user accounts each create their own access and maintenance requirements.
Use secure IP transport between gateways and network services, restrict administrative access, maintain key-management procedures, and segment IoT infrastructure from critical control networks where appropriate. Document who can provision devices, change decoders, modify alarm thresholds, and issue downlink commands. These controls matter as much in a 20-device pilot as they do in a multi-site deployment.
Downlinks require restraint. They are useful for configuration updates, reporting-interval changes, and occasional commands, but LoRaWAN downlink capacity is limited and timing is not guaranteed in the way many wired control engineers expect. Avoid building a process that depends on frequent acknowledgments or immediate remote actuation. When a command is safety-critical, evaluate whether LoRaWAN is suitable at all and design fail-safe behavior at the field device.
Commission for Operations, Not Just Connectivity
A device appearing online is not the end of commissioning. Verify the complete path from sensor measurement to SCADA display, alarm, historian, and operator procedure. Test normal values, out-of-range values, gateway outages, network-server interruptions, stale data, sensor failure, and recovery after power loss.
Create an acceptance record for every deployed endpoint that includes its location, device identifier, sensor type, reporting interval, decoder version, gateway coverage observations, and SCADA tag references. This documentation saves considerable time when an asset is replaced years later or when a pilot expands into a regional rollout.
LoRaWorld works with organizations that need to move beyond a proof of concept and select gateway infrastructure suited to real field conditions. The strongest deployments pair vetted hardware with a clear integration model and an operating plan that remains manageable after the first installation crew has left.
Start with one operational question that matters - a level that prevents an overflow, a meter that reveals loss, or a remote cabinet that signals unauthorized access. If the data has a defined owner and response, integrating it into SCADA becomes a practical improvement to operations rather than another disconnected IoT dashboard.
